Cool Roof Coating Application Cost per Square Foot Guide

The expansion of sustainable building infrastructure focuses heavily on optimizing the exterior envelopes of residential and commercial structures to manage intense solar heat gain. Traditional dark roofing materials, such as standard modified bitumen or weathered asphalt shingles, act as massive thermal sponges. These surfaces absorb up to 90% of incident solar radiation, causing roof temperatures to spike significantly above ambient air levels. This thermal loading accelerates the mechanical degradation of the roof structure and transfers immense heat down into the building interior, driving up peak summer cooling demands and straining HVAC systems.

Fluid-applied cool roof coatings resolve this operational challenge by converting a standard roof surface into a highly reflective, elastomeric weather barrier. Composed of specialized polymers heavily infused with titanium dioxide or ceramic micro-spheres, these liquid coatings are engineered to bounce solar energy away from the structure and emit absorbed heat back into the sky. Evaluating a roof restoration project of this scale requires looking past superficial bucket prices to understand the multi-tiered variables of surface preparation, dry mil thickness tolerances, and long-term utility savings. This educational guide breaks down the performance metrics, product classifications, and labor frameworks that define modern applications, establishing an objective foundation to accurately evaluate, plan, and preserve a sustainable roof upgrade.

Overview of Cool Roof Coating Applications

When analyzing a facilities upgrade using a cool roof coating application cost per square foot framework, property owners must evaluate the project as a precise, multi-staged engineering installation. In structural terms, a cool roof coating is a liquid-applied monolithic membrane that conforms directly to an existing roof substrate. The field application requires a calculated sequence of tasks: chemical or mechanical surface cleaning, seam reinforcing with polyester fabrics, applying dedicated primers to stop chemical leaching, and spraying or rolling the topcoat layers to achieve a continuous, waterproof barrier.

The primary objective of formulating an accurate per-square-foot baseline is to isolate the variable material chemistry and labor demands from the fixed logistical overhead. Heavy commercial spray rigs, safety staging systems, municipal building permit reviews, and core testing inputs carry foundational costs that apply regardless of the specific building scale. Consequently, while massive industrial warehouses often benefit from large open spaces that reduce the unit labor cost, residential roofs with steep pitches or complicated mechanical layouts face high access challenges that expand the per-square-foot cost baseline. A properly executed application satisfies international solar reflectance index (SRI) benchmarks, stops sub-surface water intrusion, cuts building peak cooling demand by 10% to 30%, and defers the multi-thousand-dollar expense of a total structural roof tear-off for multiple decades.

Core Material Typologies and Performance Profiles

Fluid-applied cool roof coatings are categorized into distinct polymer families based on their chemical composition, structural flexibility, and resistance to standing water.

Cool Roof Coating Material Matrix

Category / Type	Description	Common Use Case	Time / Cost / Effort Level
Acrylic Elastomeric	Water-based, highly breathable polymer formulas delivering high UV resistance and easy cleanup.	Sloped residential roofs, metal panels, and roofs in arid climates with good positive drainage.	Low application time; Lowest material cost; Moderate physical effort.
High-Solids Silicone	Premium moisture-cure polymers that form a dense rubber shield completely immune to ponding water.	Commercial low-slope or flat roofs prone to seasonal water pooling and high humidity exposure.	Medium application time; High material cost; Moderate physical effort.
Aliphatic Polyurethane	Highly durable, abrasion-resistant polymer coatings providing exceptional physical toughness against foot traffic.	Rooftop terraces, pedestrian walkways, or areas exposed to chemical grease and frequent maintenance.	High application time; High material cost; High precision effort.
Polyurea Systems	Ultra-fast curing, two-component premium coatings that dry instantly to form a thick structural shield.	Fast-track industrial complexes or areas facing sudden weather shifts where downtime must be minimized.	Low execution time; Maximum material cost; High professional effort.

Selecting the ideal coating formulation requires a meticulous site assessment that evaluates the existing roofing material and the roof’s slope conditions. For instance, while acrylic coatings provide an economical, eco-friendly solution for metal roofs or steep pitches, they will rapidly dissolve and peel if subjected to standing water. For flat or low-slope commercial systems where water drains slowly, specifying premium high-solids silicone is mandatory due to the material’s chemical capacity to withstand continuous submersion without breaking down.

Practical Structural Scenarios and Project Applications

To clarify how these material selections perform under real-world building and regulatory demands, analyze three distinct installation applications.

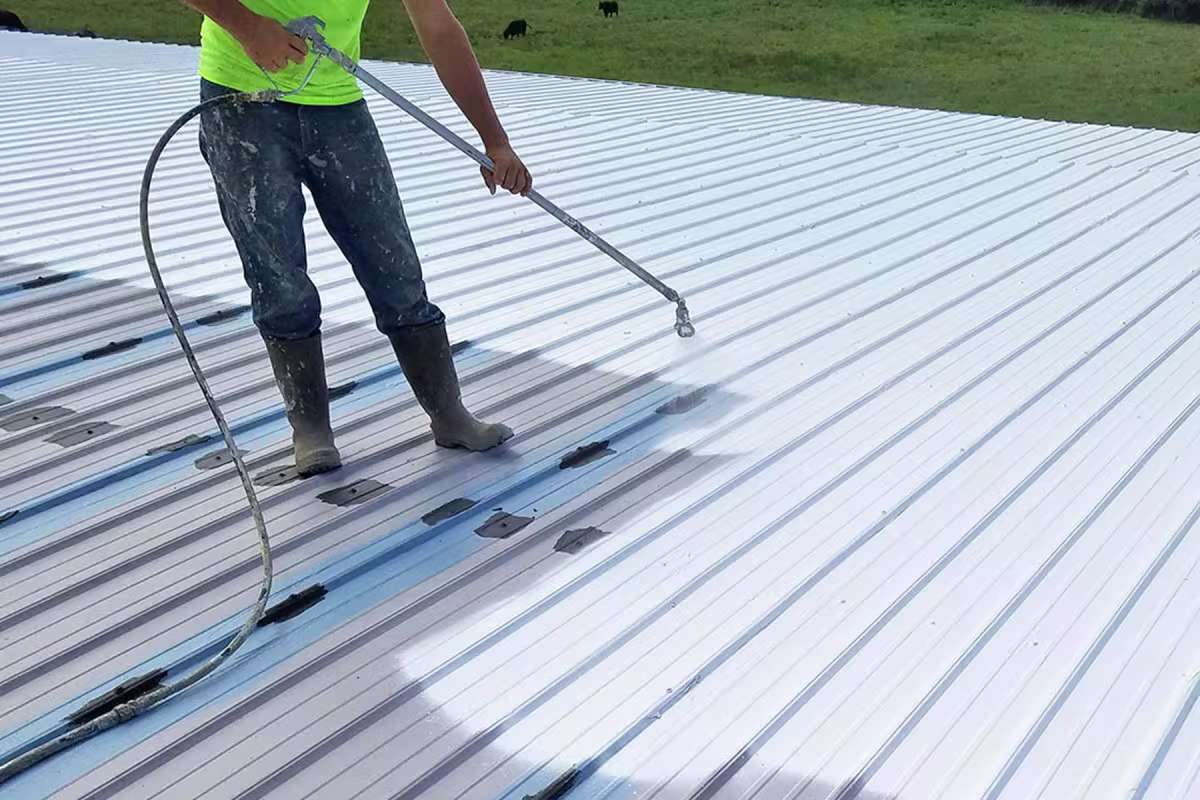

Scenario 1: The Suburban Sloped Metal Rejuvenation

A traditional metal roof layout on a single-story commercial office or residential garage suffering from surface oxidation, high internal temperatures, and minor seam leaks.

• Key Steps: 1. Pressure-wash the metal panels down to raw, clean substrate to clear away rust scale. 2. Treat exposed screw heads with specialized polyurethane seam compound patches. 3. Apply a rust-inhibitive metal primer layer across the surface area. 4. Roll two successive coats of white reflective acrylic elastomeric coating to build a 20-mil dry thickness.

• Relevance: This layout uses affordable water-based materials to restore aging metal panels, safely lowering building heat gain while stopping rust progression without a costly panel tear-off.

Scenario 2: The High-Traffic Urban Commercial Low-Slope Core

A low-slope urban facility housing heavy mechanical HVAC equipment on its roof, subject to regular maintenance foot traffic and areas where rainwater pools after storms.

• Key Steps:

  1. Clean the aging modified bitumen roof substrate using industrial degreasing agents.

  2. Embed a woven polyester reinforcement fabric matrix across all structural flashing corners and transitions.

  3. Spray a premium, high-solids white silicone coating using a calibrated commercial rig.

  4. Broadcast yellow safety aggregates over designated walking zones to create slip-resistant paths for HVAC workers.

• Relevance: This application targets the dual threats of mechanical abrasion from foot traffic and standing water, utilizing silicone’s robust waterproofing traits to preserve a flat roof asset.

Scenario 3: The Rapid-Curing Industrial Complex

A high-volume manufacturing center located in a volatile climate zone prone to sudden, unexpected afternoon rainstorms and strict environmental rules on runtime delays.

• Key Steps:

  1. Mechanically scarify and clear the old single-ply structural roof substrate.

  2. Direct-spray a two-component plural-component polyurea coating system at a high-pressure threshold.

  3. Verify a 30-mil dry structural layer thickness achieved within minutes of chemical nozzle mixing.

  4. Re-commission the rooftop facility immediately for active operations.

• Relevance: This system represents the highest tier of fast-track industrial engineering, showing how fast-curing chemistries can bypass standard multi-day dry time windows without risking washout from sudden rain.

Comparative Evaluation

Scenario 1 leverages geometric pitch and simple acrylic rolling steps to minimize upfront capital outlays on metal substrates. Scenario 2 scales material engineering significantly, utilizing high-solids silicone and fabric matrixes to handle standing water on flat roofs. Scenario 3 moves entirely into specialized multi-component spray physics, trading raw material simplicity for rapid drying and high physical durability in volatile industrial settings.

Technical Budgeting, Substrate Prep, and Resource Matrices

Developing an accurate budget framework for a fluid-applied membrane project requires separating upfront material costs from essential subsurface repairs, deep mechanical cleaning, and manufacturer warranty fees. When projecting expenditures using a cool roof coating application cost per square foot framework, building owners must evaluate structural variables like substrate cleaning difficulty, structural priming needs, and required dry mil thickness profiles.

Sample Project Budget Framework (10,000 Sq. Ft. / 100 Squares Baseline)

Project Category	Acrylic Elastomeric System	High-Solids Silicone System	Premium Polyurethane Matrix	Optimization Tips
Material Cost (Per Sq. Ft.)	$0.15 – $0.80	$0.50 – $1.40	$0.45 – $1.30	Buy in bulk 55-gallon drums instead of 5-gallon buckets to cut raw material costs by up to 15%.
Labor Cost (Per Sq. Ft.)	$0.50 – $1.50	$1.00 – $2.00	$1.50 – $3.00	Using airless spray rigs instead of rollers cuts manual labor hours in half on open spaces.
Site Prep, Cleaning & Washing	$0.20 – $0.50 per sq. ft.	$0.30 – $0.60 per sq. ft.	$0.30 – $0.60 per sq. ft.	Thoroughly pressure-wash the substrate; even premium coatings will peel if applied over hidden dirt or grease layers.
Structural Primers & Fabric Seams	$0.50 – $1.00 per sq. ft.	$0.00 – $0.80 per sq. ft.	$0.50 – $1.20 per sq. ft.	Silicone often bonds without a primer, which can lower your total multi-layer labor costs.
Permits, Inspections & Core Tests	$300 – $800 total	$300 – $800 total	$400 – $1,000 total	Check for local utility rebates; many states offer energy efficiency cash payouts for cool roofs.
Total Installed Cost (Per Sq. Ft.)	$1.35 – $3.80	$1.80 – $4.80	$2.75 – $6.10	While premium coatings require a higher upfront investment, they avoid the heavy tear-off bills of traditional replacements.
Expected Structural Lifespan	5 – 10 Years	10 – 15+ Years	10 – 20 Years	Warranties can be renewed long-term by applying a thin top-dressing refresh layer at year 10.

Note: The cost framework parameters and resource metrics outlined above serve as illustrative structural examples based on standard national material indices. Final field quotes will fluctuate according to localized labor structures, roof pitch changes, structural deck remediation demands, and current chemical/polymer market index adjustments.

Methodological Approaches and Sourcing Options

Building administrators can execute the procurement and assembly phase through several distinct project management channels, depending on the scale of the building and internal engineering support.

1. Certified Direct Turnkey Commercial Applicators

Engaging a professional commercial roofing firm whose specialized teams handle the project from initial layout planning through crane mobilization and final system hand-off.

• Advantages: Authorized to provision extended manufacturer system warranties (e.g., No Dollar Limit structural warranties); possess commercial automated airless spray rigs; perform verified wet-mil gauge testing.

• Disadvantages: Commands a significant upfront capital investment and general contractor management markup overhead.

2. General Commercial Painting & Maintenance Crews

Hiring a broad-scope regional maintenance company whose daily output centers on protective commercial coatings, structural waterproofing, and general exterior maintenance.

• Advantages: Highly competitive pricing structures due to flexible local labor access; rapid turnaround times for straightforward architectural layouts.

• Disadvantages: May lack the specialized roofing engineering certifications required to perform complex structural flashing details or secure extended manufacturer material warranties.

3. Direct Component Procurement (DIY Resident Execution)

The property owner independently procures standard elastomeric coatings from a local distributor, rents an airless sprayer or uses heavy nap rollers, and applies the product themselves.

• Advantages: Eliminates middle-tier general contractor markups, providing the lowest direct capital investment per square foot.

• Disadvantages: Demands intense, grueling physical labor and carries high safety risks; improper substrate preparation or thin application will immediately cause the coating to bubble, peel, and fail.

Mitigating Application Risks and Substrate Failures

Fluid-applied cool roof membranes are highly sensitive to site conditions during installation. Failing to follow strict material guidelines during application will quickly result in surface bubbling, peeling, or wind-lift failures.

• Applying Coatings Over a Wet or Moisture-Laden Substrate: Spraying a cool roof coating over a deck that traps internal moisture or morning dew is a critical engineering error. When the summer sun heats the roof, this trapped water will vaporize and expand. Because the coating creates an airtight shield, the steam will force the membrane upward, creating large blisters that pop and ruin the system’s adhesion. Prevention: Require a comprehensive moisture scan using an electronic moisture meter or infrared camera, and verify the substrate is completely dry before starting the spray application.

• Inadequate Dry Mil Thickness (Thin Coating Wear): If a contractor thins down the product with water or sprays it too thin to cut material costs, the finished dry membrane will lack the tensile strength needed to handle thermal expansion. The thin layer will rapidly crack under intense sunlight and wear through within a few seasons. Prevention: Utilize specialized wet-mil gauges continuously during the application process to guarantee the product matches the manufacturer’s strict thickness standards (typically 20 to 30 dry mils minimum).

• Dew Point Pitfalls and Weatherization Timing Failures: Applying water-based acrylic coatings too late in the afternoon when ambient temperatures drop close to the local dew point stops the polymer from curing correctly. If unexpected night dew or rain hits the wet coating before it forms a skin, the liquid product will wash off the roof completely, clogging drainage gutters. Prevention: Stop all coating work at least 4 to 6 hours before anticipated rain or evening dew cycles, and ensure ambient temperatures stay safely above 50°F throughout the curing phase.

Long-Term Maintenance and Reflectivity Management Protocols

While a fluid-applied cool roof membrane eliminates the high structural degradation common to old unprotected substrates, maintaining its high solar reflectance requires a consistent, low-effort care routine.

• Bi-Annual Roof System Maintenance Checklist:

  • Clean out structural drains, overflow scuppers, and gutter runs to prevent standing water from backing up onto the membrane seams.

  • Inspect the flashing zones around HVAC curbs, plumbing stacks, and parapet wall corners to confirm no physical tearing or delamination has occurred.

  • Check the surface for accumulated airborne dust, industrial soot, or carbon emissions, which darken the white finish and lower its thermal efficiency.

• Reflectivity Restoration Protocol:

  • Power-wash the white membrane every 2 to 3 years using a low-pressure wide-angle spray nozzle (under 1,500 PSI) and a mild, biodegradable detergent. Clearing away surface dirt resets the coating’s high solar reflectance index (SRI), keeping energy savings at peak levels.

Performance Verification and Asset Project Documentation

Maintaining an organized archive of your installation documents ensures subsequent home property appraisals, local zoning audits, or insurance adjustments proceed smoothly without logistical delays.

Systematizing Construction Records

Property owners should compile a permanent physical or digital property ledger containing municipal permit sign-offs, core sample test logs, infrared moisture map reports, and detailed data sheets showing the batch numbers of all membranes and bonding adhesives.

Illustrative Structural Documentation Profiles

1. Example A: A building manager files a manufacturer’s official 15-year No Dollar Limit (NDL) warranty certificate. This document proves to a future property buyer that the manufacturer will cover 100% of any future roof leak repairs, maximizing the building’s market appraisal value.

2. Example B: During a corporate energy audit, a facilities director presents before-and-after utility bills showing a 22% drop in peak cooling energy consumption. This data proves the financial return on investment achieved by the cool roof project.

3. Example C: A contractor records date-stamped photographs of the internal structural deck flashing and self-healing ice and water shield membranes before the final surface layers are fastened down, providing permanent proof of building code compliance.

Closing Summary

Successfully planning and executing a structural outdoor transformation using a cool roof coating application cost per square foot framework depends on balancing proper subsurface preparation with quality material selection. While fluid-applied cool roof systems require careful planning and a precise installation process, they provide a durable, seamless alternative that eliminates the heavy waste and cost of traditional replacements. By ensuring deep moisture inspections, maintaining a consistent dry mil thickness, and keeping the reflective surface clean, homeowners can secure a premium cooling system that functions reliably across every season.

Frequently Asked Questions (FAQ)

What is the difference between an acrylic and a silicone cool roof coating?

Acrylic coatings are water-based, highly breathable, and cost-effective, making them excellent for sloped metal or asphalt roofs with good positive drainage. Silicone coatings are moisture-cure polymers that form a dense rubber shield completely immune to standing water, making them the standard choice for low-slope or flat commercial roofs prone to seasonal water pooling.

How thick should a cool roof coating be when fully cured?

To perform effectively as a durable, waterproof membrane, a cool roof coating must be applied to reach a minimum dry film thickness of 20 to 30 mils (one mil equals 1/1,000 of an inch), which is roughly the thickness of a credit card. Applying the product too thin reduces its tensile strength, leading to premature cracking and system failure.

Can a cool roof coating be applied over a standard residential asphalt shingle roof?

While specialty asphalt coatings exist for localized patch repairs, applying a full-coverage cool roof liquid coating over a traditional residential asphalt shingle roof is generally not recommended. Shingles need to breathe and shift individually; locking them together with a heavy fluid membrane can trap moisture underneath, accelerate wood rot in the roof deck, and void the shingle manufacturer’s original product warranty.
